EQO Mat
Your Best Probe Cleaning Tool
Dealing with probe business for 20 years, WIT had developed its own cleaning pad for probes that utilizes a 2-layer design using 2 different materials.
What is EQO Mat?
EQO Mat is a cleaning pad that eliminates the contaminants on the tip of the probe such as flux by pressing against to probes.
Did you Know?
Did you know that intermittent test failures of PCBA and false rejects are 80% caused by the flux accumulated and stuck on probe tips? Unwanted contamination of probe tips leads to the inconsistent and poor conductivity between test points and probes.
How EQO Mat works?
The Principle of EQO Mat
The gel layer will capture those probe tip contamination that was grinded by the polishing layer.
The polishing layer will be responsible of removing contaminants from the probe tip.
Samples of Probe Cleaned with EQO Mat
Before Cleaning
Before Cleaning
Before Cleaning
8-point crown subjected to heavy use
Contact is an issue since most of the conducting part of the probe is already covered.
After Cleaning
Before Cleaning
Before Cleaning
8-point crown after cleaning with EQO Mat
Tip is noticeably cleaner and can be installed again for use.
Before Cleaning
Before Cleaning
Before Cleaning

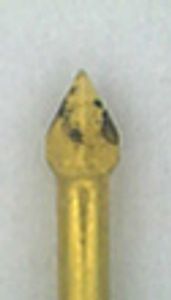

Pointed tip style probe subjected to heavy use
Contact is an issue since tip is covered already with dirt due to usage.
After Cleaning
Before Cleaning
Before Cleaning

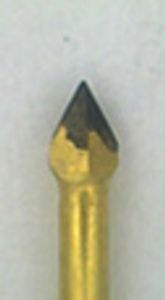

Pointed tip style after cleaning with EQO Mat
Pointed tip are more easy to be cleaned by EQO Mat resulting in a more cleaner tip even if the probe is subjected to heavy use.
