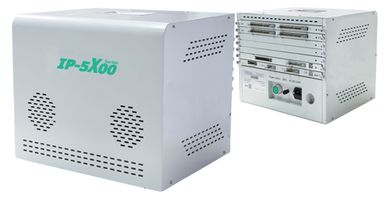

IP-5X00 In-Circuit Test System

 The quickest way to test and measure electronic components mounted on PCBA.

Catalog here

 IP-5X00 Series is an in-circuit test system which gives an accurate measurement to wide range of electronic components such as resistors, capacitors, connectors, diodes, etc., providing quick judgement for the PCBA and ease of work for the operator.

Key Features of the IP-5X00 ICT System

Measurement & Relay Boards Diagnosis

Easy to understand Pin Search Function

Measurement & Relay Boards Diagnosis

IP-5X00 Software has its own self-test measurement feature that allows the user to check the status of the measurement board and relay boards.

Board Map View

Easy to understand Pin Search Function

Measurement & Relay Boards Diagnosis

Board Map View allows the user to navigate the locations of components, test point  and pin numbers. It also shows the failed parts after the testing.

Easy to understand Pin Search Function

Easy to understand Pin Search Function

Easy to understand Pin Search Function

IP-5X00 is also equipped with the Pin Search function which allows the user to find the pin by number on the actual ICT Fixture by connecting the jack wire to the machine.

IP-5X00 Machine Capabilities

Measurement Points

The IP-5X00 Machine has a maximum of 2048 pins allocation.

Test Time

Average test time for single test is approximately 0.5-30ms, but it still depends on the board and component quantity.

GPIO for Auto Stamping

Up to 16 pcs of Auto-stamp can be actuated by IP-5X00

Threshold for SHORT

10 ohms variable.

Number of Steps

IP-5X00 is capable of up to 100,000 steps.

Resistor Measurement

Can measure between 0.1 ohms -30 MegaOhms of resistance (change by peripheral circuit)

Capacitor Measurement

Can measure 100pF up to 60mF of capacitance (change by peripheral circuit)

Inductor Measurement

Can measure 10 micro Henry up to 60 micro Henry of inductance (change by peripheral circuit)

Guarding

Can input up to 5 maximum guarding points.

IP-5X00 Series

IP-5000Z

IP-5300ST

IP-5300ST

Mobile Type ICT Machine

IP-5300ST

IP-5300ST

IP-5300ST

Standing Type ICT Machine

IP-5300IL

IP-5300ST

IP-5300IL

In-Line Type ICT Machine
