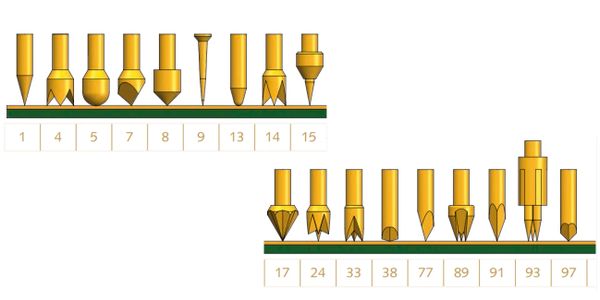

Different INGUN Tip Styles

To ensure the penetration of OSP or contaminated surfaces, aggressive, self-cleaning tip styles are recommended. Passive tip styles are used for clean surfaces and to avoid puncturing the surface.

  VIAs can be contacted using the edge of a tip style on the inner surface of the ring, or with the point of a crown tip style vertically on the surface of the via.


  Self-centering tip styles, similar to those used for pins can be used for these kinds of test points


  An optimally-centered inverse cone tip style is recommended for pins and component pins. Flat, pointed and tip styles with outer insulation are also possible for these kinds of test points.
